Cellular-Resolution
Pattern Illuminator
Polygon

Pattern Illuminator for Life Science Research

Mightex’s market-leading Polygon pattern illuminators provide precise spatiotemporal control of light with subcellular resolution, making it the perfect illumination tool for life science research.

  • Any Shape, Size, Timing, and Colour
  • Simultaneous Multi-Region Illumination
  • Subcellular Resolution
  • Compatible with Any Microscope

State-of-the-Art DMD Technology

The Polygon uses digital mirror device (DMD) technology to illuminate multiple regions simultaneously. A DMD is composed of hundreds of thousands of micro-mirrors that can be individually turned on to reflect light onto the sample. Thus, you can control each mirror to control the area(s) of illumination and create any number of different sized patterns. The Polygon DMD device can be mounted into the infinity-path of any microscope.

1000_microscope
More Pixels, Faster Speed
Same Versatility
Polygon1000

Larger Field-of-View, Finer Resolution

New large DMD chip combined with interchangeable front tube optics enables larger field-of-view without comprising resolution and power.

1000_3

Faster than Anything Else in the Market

Increased maximum frame rate means better temporal resolution for advanced physiologically-relevant experiments and virtually simultaneous 2-colour illumination of distinct ROIs.

1000_4

Real-Time Projection, Closed-Loop Experiments

Faster uploading time enables the Polygon1000 to perform real-time pattern illumination for closed-loop experiments (faster than HDMI refresh rates [60Hz/120Hz]).

1000_5

More Power, Extra Flexibility

Large chip and improved optics enhances transmission efficiency enabling the Polygon1000 to achieve increased power density at the specimen level giving the researcher more room for intensity control.

1000_6

Different Models Optimized for Life Science Applications

Mightex offers multiple Polygon models that have been designed with different features to meet the needs of a wide-range of applications that use patterned illumination. Please see below for all available Polygon models.

Polygon1000-G

The Polygon1000-G is a flexible solution for patterned illumination, as this patterned illuminator can be used with any lightsource (350-700nm) that accepts a 3mm core lightguide. Thus, the Polygon1000-G provides future flexibility for different wavelengths and lightsources, depending on your application.

  • Wavelengths: 350-700nm
  • Lightsource: lightguide-coupled
  • Interchangeable front tubes available for fine resolution or large field-of-view

Polygon1000-DL

The Polygon1000-DL is a flexible solution for large field of view or high-power patterned illumination applications, as this patterned illuminator can be used with any fiber-coupled lightsource (400-700nm), such as high-power lasers. This Polygon1000 model has been designed for high-power applications, such as in vivo optogenetics.

  • Wavelengths: 400-700nm
  • Lightsource: fiber-coupled
  • Interchangeable front tubes available for fine resolution or large field-of-view
polygon1000-1xtube

Polygon1000 with 1x Front Tube

Fine resolution without compromising field-of-view

polygon1000-2xtube

Polygon1000 with 2x Front Tube

Large field-of-view without compromising resolution

Polygon400-G

The Polygon400-G is a flexible solution for patterned illumination, as this patterned illuminator can be used with any lightsource (400-700nm) that accepts a 3mm core lightguide. Thus, the Polygon400-G provides future flexibility for different wavelengths and lightsources, depending on your application.

  • Wavelengths: 400-700nm
  • Lightsource: lightguide-coupled

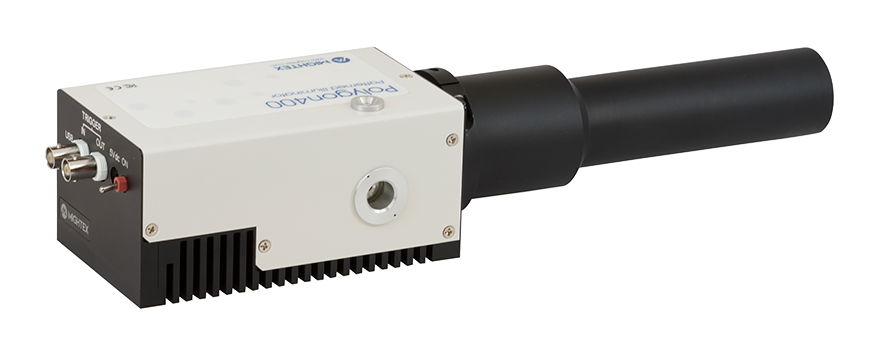

polygon-g-photo2_newlogo1

Polygon400-DL

The Polygon400-DL is a flexible solution for large field of view or high-power patterned illumination applications, as this patterned illuminator can be used with any fiber-coupled lightsource (400-700nm), such as high-power lasers. This Polygon400 model has been designed for high-power applications, such as in vivo optogenetics.

  • Wavelengths: 400-700nm
  • Lightsource: fiber-coupled
Polygon400 DL Product Photo

Polygon400-DP

The Polygon400-DP is a flexible solution for UV patterned illumination, as this patterned illuminator can be used with any lightsource that accepts a 3mm core lightguide. Unlike the Polygon400-G, the Polygon400-DP has been optimized for UV illumination (350-700nm) applications such as, uncaging and photopatterning. In addition, the Polygon400-DP provides high-resolution illumination with a smaller field of view.

  • Wavelengths: 350-700nm
  • Lightsource: lightguide-coupled
polygon-dp-photo2_newlogo1

Powerful User-Friendly Polyscan Software for Life Science Experiments

Mightex’s PolyScan software platform is bundled with every Polygon to help you execute sophisticated patterned illumination experiments for your research. It provides:

  • Easy to use GUI to draw and define illumination patterns
  • Arrange sequences of illumination patterns
  • Define temporal illumination parameters for you experiments
  • Synchronize illumination patterns with other lab equipment

Illumination of Any Shape or Size

The Polygon enables scientists to precisely control where light will hit their sample. With subcellular resolution, the Polygon can illuminate any cellular feature in any shape or size. Our pattern editor allows the researcher to draw any pattern in true dimension or import an image of interest to project onto their sample, providing full spatial control of illumination.

any-shape-polygon

Multi-Wavelength Illumination

The Polygon provides great flexibility when it comes down to wavelength selection. From UV to VIS/NIR range, the Polygon can project light of different colours suitable for your light-sensitive constructs.

multi-colour-polygon

Simultaneous Multi-Region Illumination

Unlike a point scanner that sequentially illuminates a region-of-interest pixel by pixel, the Polygon projects all ON pixels simultaneously such that multiple regions-of-interest are illuminated at the exact same time.

Temporal & Intensity Control of Light Stimulation

Control the initiation, duration, and intensity of light stimulation patterns using the Polygon. Create different waveforms to control the light intensity and duration outputted from the Polygon.

Compatible with Any Microscope

The Polygon is designed to be coupled into the infinity space of any microscope model (Leica, Nikon, Olympus, Zeiss) with Mightex’s microscope-specific adapters. Please contact Mightex to discuss the different options available for coupling to a microscope.

microscope_polygon

Synchronize with Electrophysiology or Imaging Equipment

The Polygon comes with BNC connectorized TTL trigger input and output for easy synchronization with multiple lab equipment. Synchronize the Polygon with your motorized stage for field of view stitching, or synchronize your stimulation patterns with electrophysiology equipment.

Third-Party Camera Compatible

The Polygon works with any third-party camera. All the Polygon needs is access to the imaging acquisition window for calibration and pattern creation.

third-partycamera2

A Diverse Range of Photostimulation Applications

Click on an application below to view customer examples using the Polygon.

Polygon Accessories

Microscope Adaptors

Mightex offers different microscope adapters for all inverted and upright microscopes. The microscope adapter is designed to couple the Polygon into the infinity-path of the microscope for patterned illumination capabilities.

Multi-Port Illuminator (MPI)

Mightex’s Multi-Port Illuminator (MPI) enables researchers to add a Polygon pattern illuminator to their microscope for targeted illumination while keeping their original light source for epi-fluorescence or other wide-field stimulation. MPI can be used in any inverted or upright microscope (e.g. Leica, Nikon, Olympus and Zeiss).

40+ Publications Using the Polygon

350+ Worldwide Polygon Customers

Below is a select list of Universities that are using the Polygon.
