Spotlight LEDs

Mightex BLS-series BioLED light sources are modularized fully-customizable turn-key solutions for optogenetics, fluorescence excitation, and other biophotonics applications. Precisely-timed and high-intensity light pulses are required in optogenetics experiments to activate channelrhodopsins (ChR2, ChR1 etc.) and halorhodopsins (NpHR) in order to excite and inhibit neurons. To meet these requirements, Mightex has developed a proprietary “IntelliPulsing” technology to allow BLS-series sources to output significantly higher power in pulse mode than what the LEDs are rated for in CW mode.

Spotlight LEDs

Mightex BLS-series BioLED light sources are modularized fully-customizable turn-key solutions for optogenetics, fluorescence excitation, and other biophotonics applications. Precisely-timed and high-intensity light pulses are required in optogenetics experiments to activate channelrhodopsins (ChR2, ChR1 etc.) and halorhodopsins (NpHR) in order to excite and inhibit neurons. To meet these requirements, Mightex has developed a proprietary “IntelliPulsing” technology to allow BLS-series sources to output significantly higher power in pulse mode than what the LEDs are rated for in CW mode.

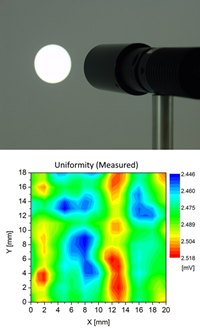

Mightex BLS-series precision LED spotlight employ the latest high-power LED technologies and a proprietary coupling optics to achieve the best beam uniformity. In conjunction with BioLED light source control modules, these LED sources can be used for a wide range of applications including optogenetics and other bio-photonics applications.

Multi-chip LED emitters (i.e. Type-B) have been added to the product portfolio. Some of these 7W to 15W LEDs have total optical power exceeding 500mW, doubling the power of a single-chip LED. Such Type-B models with higher powers (7W and higher) feature a cooling fan, and have a different form factor compared to Type-A models. Please examine the installation drawings carefully. Power supply for the cooling fan is included in the price of the Type-B precision LED spotlights.

photo_pls_type_b_small

Type A & B Spotlight LEDs

Part NumberType(1)Wavelength Code (xxxx)Wavelength (nm)Output Power (mW) - CWOutput Power (mW) - IntelliPulsing (2)
BLS-PLS-0365-030-02A0365365(2W)50100
BLS-PLS-0365-030-04A0365365(4W)180360
BLS-PLS-0365-030-11B0365365(11W)310620
BLS-PLS-0380-030-03A03803806565
BLS-PLS-0385-030-02A0385385(2W)50100
BLS-PLS-0385-030-04A0385385(4W)250300
BLS-PLS-0385-030-11B0385385(11W)375750
BLS-PLS-0390-030-03A0390390140140
BLS-PLS-0395-030-03A0395395150150
BLS-PLS-0400-030-03A0400400(3W)150150
BLS-PLS-0400-030-17B0400400(17W)400400
BLS-PLS-0405-030-03A0405405180180
BLS-PLS-0410-030-03A0410410175175
BLS-PLS-0415-030-03A0415415120120
BLS-PLS-0420-030-03A0420420160160
BLS-PLS-0425-030-03A0425425160160
BLS-PLS-0455-030-04A0455455150300
BLS-PLS-0470-030-04A0470470(4W)110220
BLS-PLS-0470-030-15B0470470(15W)450450
BLS-PLS-0490-030-01A049049080110
BLS-PLS-0505-030-04A0505505(4W)65130
BLS-PLS-0505-030-12B0505505(12W)185185
BLS-PLS-0530-030-04A0530530(4W)50100
BLS-PLS-0530-030-15B0530530(15W)200200
BLS-PLS-0560-030-02A0560560 broadband9595
BLS-PLS-0590-030-04A0590590(4W)3570
BLS-PLS-0590-030-05B0590590(5W)130260
BLS-PLS-0617-030-04A0617617(4W)150300
BLS-PLS-0617-030-10B0617617(10W)450900
BLS-PLS-0625-030-04A0625625(4W)150300
BLS-PLS-0625-030-13B0625625(13W)315315
BLS-PLS-0656-030-04A0656656(4W)180360
BLS-PLS-0656-030-07B0656656(7W)420420
BLS-PLS-0680-030-02A06806802040
BLS-PLS-0700-030-01A07007002754
BLS-PLS-0720-030-01A07207203978
BLS-PLS-0740-030-03A0740740(3W)100150
BLS-PLS-0740-030-10B0740740(10W)300-
BLS-PLS-0780-030-02A078078060120
BLS-PLS-0810-030-02A081081065130
BLS-PLS-0850-030-02A085085085-
BLS-PLS-0870-030-02A087087060120
BLS-PLS-0910-030-02A091091060120
BLS-PLS-0940-030-02A0940940100200
BLS-PLS-0980-030-01A09809801632
BLS-PLS-6500-030-04A6500Glacier white, 6,500K(4W)100200
BLS-PLS-6500-030-15B6500Glacier white, 6,500(15W)400800
BLS-PLS-5500-030-04A5500Cool white, 5,500K(4W)85170
BLS-PLS-5500-030-12B5500Cool white, 5,500K(12W)400400
BLS-PLS-4000-030-04A4000Warm white, 4,000K85170
BLS-PLS-3000-030-03A3000Warm white, 3,000K(3W)7070
BLS-PLS-3000-030-12B3000Warm white, 3,000K(3W)320320

1. Type-A and Type-B LED sources have different installation drawings. The former does not include a cooling fan, whereas the latter does. When ordering an LED controller for a Type-B LED, please make sure to upgrade the AC/DC power adapter from the ‘standard’ 12V to 24V (P/N: ACC-SLC-24VU). 2. IntelliPulsing only available when working with BLS-SA02/04-US BioLED control modules.

Type H Spotlight LEDs

Part NumberType (1)Wavelength Code (xxxx)Wavelength (nm)Output Power (mW)- CW (1)Output Power (mW)- IntelliPulsing(1)
BLS-PLS-0365-030-48-SH0365365(50W)1100NA
BLS-PLS-0405-030-50-SH0405405(50W)13501350
BLS-PLS-0470-030-50-SH0470470(50W)18001800
BLS-PLS-0525-030-60-SH0525525(60W)715715
BLS-PLS-0625-030-38-SH0625625(40W)605605
BLS-PLS-6500-030-33-SH6500Glacier white, 6,500(30W)11001100

Note: (1). Maximum CW output achievable with a BLS-13000-1 BioLED control module.

Minimum Working Distance: 100mm
Spot Diameter: 30mm at minimum working distance. Spot diameter scales linearly with working distance.
