Lightguide-Coupled LEDs

Mightex BLS-series BioLED light sources are modularized fully-customizable turn-key solutions for optogenetics, fluorescence excitation, and other biophotonics applications. Precisely-timed and high-intensity light pulses are required in optogenetics experiments to activate channelrhodopsins (ChR2, ChR1 etc.) and halorhodopsins (NpHR) in order to excite and inhibit neurons. To meet these requirements, Mightex has developed a proprietary “IntelliPulsing” technology to allow BLS-series sources to output significantly higher power in pulse mode than what the LEDs are rated for in CW mode.

Single-Wavelength

Mightex BLS-series BioLED light sources are modularized fully-customizable turn-key solutions for optogenetics, fluorescence excitation, and other biophotonics applications. Precisely-timed and high-intensity light pulses are required in optogenetics experiments to activate channelrhodopsins (ChR2, ChR1 etc.) and halorhodopsins (NpHR) in order to excite and inhibit neurons. To meet these requirements, Mightex has developed a proprietary “IntelliPulsing” technology to allow BLS-series sources to output significantly higher power in pulse mode than what the LEDs are rated for in CW mode.

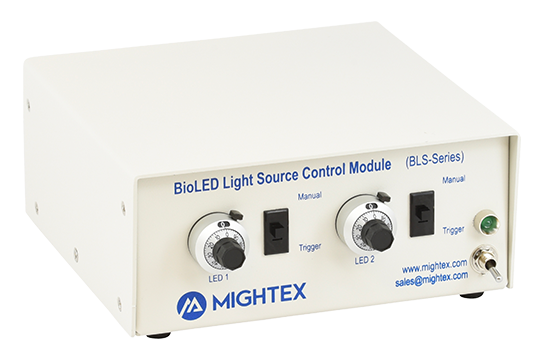

Mightex BLS-series lightguide-coupled LED’s employ the latest high-power LED technologies and a proprietary coupling optics to achieve maximum optical output power. In conjunction with BioLED light source control modules, these LED sources can be used for a wide range of applications including optogenetics and other bio-photonics applications.

(Note: light guide not included, and other light guide adapters supported. Both ordered separately)

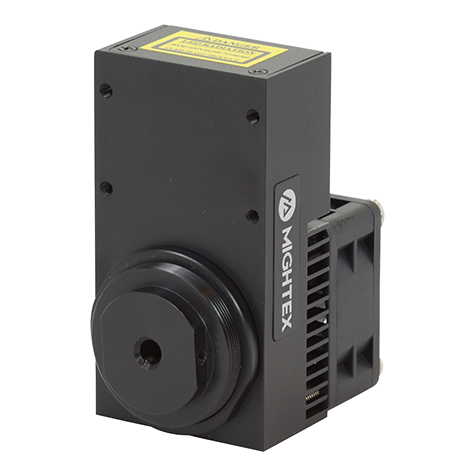

gcs-type-b_newlogo

Type A & B Lightguide-Coupled LEDs

Part Number (1)Wavelength CodeType (2)DescriptionPeak Wavelength
(nm)
Radiant Flux (mW) - CW (3)Radiant Flux (mW) - IntelliPulsing (3)
BLS-GCS-0340-02-xxxx340ADUV 340nm, 2W3401212
BLS-GCS-0365-02-xxxx0365AUV 365nm, 2W36590180
BLS-GCS-0365-04-xxxx0365AUV 365nm, 4W365220440
BLS-GCS-0365-07-xxxx0365BUV 365nm, 7W365300600
BLS-GCS-0365-11-xxxx0365BUV 365nm, 11W365375750
BLS-GCS-0365-13-xxxx0365BUV 365nm, 13W365950(4)1600
BLS-GCS-0380-03-xxxx0380AUV 380nm, 3W3808080
BLS-GCS-0385-02-xxxx0385AUV 385nm, 2W385100200
BLS-GCS-0385-04-xxxx0385AUV 385nm, 4W385300600
BLS-GCS-0385-07-xxxx0385BUV 385nm, 7W385330660
BLS-GCS-0385-11-xxxx0385BUV 385nm, 11W385410820
BLS-GCS-0385-13-xxxx0385BUV 385nm, 13W3851180(4)2000
BLS-GCS-0390-03-xxxx0390AUV 390nm, 3W390165165
BLS-GCS-0395-03-xxxx0395AUV 395nm, 3W395180180
BLS-GCS-0400-03-xxxx0400AUV 400nm, 3W400175175
BLS-GCS-0405-03-xxxx0405AUV 405nm, 3W405215215
BLS-GCS-0410-03-xxxx0410A410nm, 3W410210210
BLS-GCS-0415-03-xxxx0415A415nm, 3W415210210
BLS-GCS-0420-03-xxxx0420A420nm, 3W420205205
BLS-GCS-0425-03-xxxx0425A425nm, 3W425195195
BLS-GCS-0455-04-xxxx0455ARoyal Blue, 4W455165350
BLS-GCS-0470-04-xxxx0470ABlue, 4W470130270
BLS-GCS-0470-15-xxxx0470BBlue, 15W470400800
BLS-GCS-0490-01-xxxx0490A490nm Cyan, 1W49085120
BLS-GCS-0505-04-xxxx0505ACyan, 4W5053060
BLS-GCS-0505-12-xxxx0505BCyan, 12W505200200
BLS-GCS-0530-04-xxxx0530AGreen, 4W53060150
BLS-GCS-0530-15-xxxx0530BGreen, 15W530180180
BLS-GCS-0560-02-xxxx0560A560 broadband560120120
BLS-GCS-0590-03-xxxx0590AAmber, 3W5903570
BLS-GCS-0617-03-xxxx0617ARed-Orange, 4W617200400
BLS-GCS-0617-10-xxxx0617BRed-Orange, 10W617300600
BLS-GCS-0625-03-xxxx0625ARed, 3W625200400
BLS-GCS-0656-07-xxxx0656ARed, 7W656530530
BLS-GCS-0700-01-xxxx0700ANIR, 1W7003570
BLS-GCS-0720-01-xxxx0720ANIR, 1W72050100
BLS-GCS-0810-02-xxxx0810ANIR, 2W81080160
BLS-GCS-0850-02-xxxx0850ANIR, 2W850125250
BLS-GCS-0870-01-xxxx0870ANIR, 1W87075150
BLS-GCS-0910-02-xxxx0910ANIR, 2W91080160
BLS-GCS-0940-02-xxxx0940ANIR, 2W940125250
BLS-GCS-0980-01-xxxx0980ANIR, 1W9802040
BLS-GCS-3000-03-xxxx3000AWarm White, 3W3,000K8080
BLS-GCS-3000-12-xxxx3000BWarm White, 12W3,000K240240
BLS-GCS-4000-04-xxxx4000AWarm White, 4W4,000K95200
BLS-GCS-5500-04-xxxx5500ACool White, 4W5,500K95200
BLS-GCS-5500-12-xxxx5500BCool White, 12W5,500K300300
BLS-GCS-6500-04-xxxx6500AGlacier White, 4W6,500K95200
BLS-GCS-6500-15-xxxx6500BGlacier White, 15W6,500K300600

Note: (1). “xxxxx” is the Lightguide Adapter code, see Lightguide Adapters table below (for Type-A BLS-GCS only); (2). Type-A, Type-B and Type-H LED sources have different installation drawings. Type-A does not include a cooling fan, whereas Type-B and -H does. When ordering an LED controller for a Type-B LED, please make sure to upgrade the AC/DC power adapter from the ‘standard’ 12V to 24V. The control module designed for Type-H light sources is BLS-13000-1 (sold separately), which is paired with the suitable AC/DC power adapter and does not require separate upgrade; and (3). Measured at exiting end of a 1 meter long, 3mm-core 0.59 numerical aperture (NA) liquid light guide. IntelliPulsing mode only available when working with BLS-SA02/04-US BioLED control modules; (4). Requires 3500mA (CW) and 5950mA current to achieve quoted output. Consider a BLS-13000-1 with a BLS-IO04-US.

Type H Lightguide-Coupled LEDs (super high-power, with a cooling fan)

Part NumberWavelength CodeTypeDescriptionPeak Wavelength
(nm)
Radiant Flux (mW)(1)
BLS-GCS-0365-48-xxxx365HUV 365nm, 50W3651,300
BLS-GCS-0405-50-xxxx405HUV 405nm, 50W4051,500
BLS-GCS-0470-50-xxxx0470HBlue, 50W4702,000
BLS-GCS-0525-60-xxxx0525HGreen, 60W525800
BLS-GCS-0625-38-xxxx0625HRed, 40W625700
BLS-GCS-6500-33-xxxx6500HGlacier White, 30W6,500K1,200
BLS-GCS-6500-65-xxxx6500HGlacier White, 65W6,500K2,200

Note: (1). Maximum CW output achievable with a BLS-13000-1 BioLED control module (BLS-18000-1 for BLS-GCS-6500-65-xxxx). Measured at exiting end of a 1 meter long, 3mm-core 0.59 numerical aperture (NA) liquid light guide.

Lightguide Adapters (For Type-A BLS-GCS Only)

Adapter CodeFor Ferrule Diameter(mm)For Ferrule Length(mm)
A05105≥10
A06106≥10
A07107≥10
A08108≥10
A08158≥15
