Software/TTL LED Controllers

Software/TTL Controllers

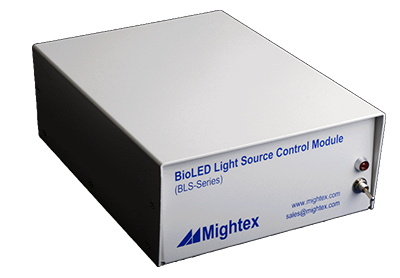

Mightex BLS-SA/PL series BioLED control modules are modularized fully-customizable turn-key solutions for optogenetics, fluorescence excitation, and other biophotonics applications. Precisely-timed and high-intensity light pulses are required in optogenetics experiments to activate channel-rhodopsins (ChR2, ChR1 etc.) and halorhodopsins (NpHR) in order to excite and inhibit neurons. To meet these requirements, Mightex has developed a proprietary “IntelliPulsing” technology to allow BLS-series sources to output significantly higher power in pulse mode than what the LEDs are rated for in CW mode.

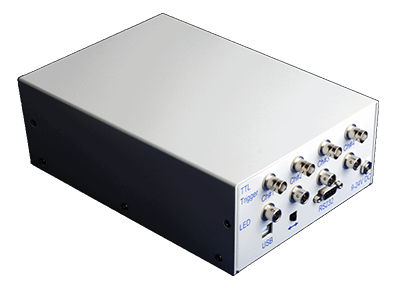

The control module features a linear LED driver design that eliminates light intensity ripples and oscillations often observed when low-cost buckpuck nonlinear drivers are used. Clean and highly repeatable pulses are critical to quantitative experiments. Both CW mode and pulse modes are supported. Time resolution of the control module is 20us and light intensity can be adjusted with 0.1% increments. Each driving channel on the control module has its own TTL trigger input. Rising edge, falling edge, and follower mode are supported in the trigger mode.

Mightex BioLED light source solutions come with a Windows-based operation software featuring an intuitive yet powerful graphic user interface. A software development kit (SDK) is also provided for user integration into environment such as Labview and Matlab.

An optional touch-screen control pad (P/N: BLS-PAD-000) is available, with which customers can control LEDs without a computer.

ModelsBLS-SA02-USBLS-SA04-USBLS-PL02-USBLS-PL04-US
Synchronization with PolygonNOYES
Number of Channels2424
Power Supply, Vdc9 ~ 24
Output Intensity Resolution (V)0.1%
Time Resolution (us)20
Maximum Number of Pulses in One Period21
Maximum Repeat Count of Pulse Sequence10(8)
External Trigger LevelTTL
Trigger Connector TypeBNC
Max. Trigger Delay (us)25
Optical Head Connector Type2-pin Aero connector
Host InterfaceUSB or RS232, selectable
Non-Volatile MemoryYes
Dimensions (mm)213 (L) x 156 (W) x 73 (H)
Weight (g)800
