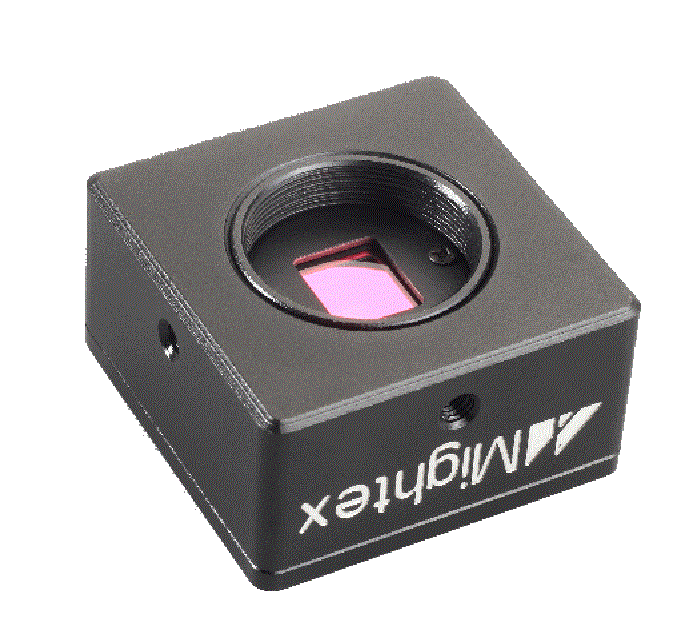

The SCE-series is Mightex’s entry level general purpose microscopy camera. The SCE-series is a low-cost imaging solution featuring a 1/3″ MP CMOS sensor with 5.2um x 5.2um size pixels. SCE-series camera has a 20fps frame rate at full resolution and higher framre rates can be achieved in ROI mode. Applications include, transmitted light microscope and wide-field imaging in research or teaching lab environments. The low-cost of the SCE_series camera makes it a great choice as a general purpose microscopy camera.
Applications:
- Transmitted light microscopy
- Live-cell imaging
- Teaching lab equipment
Performance Specifications
| Models | SCE-B013-U |
|---|---|
| Number of GPIOs | 4 |
| Resolution | 1,280 x 1,024 Monochrome |
| CMOS Chip | ½" (5:4) Micron MT9M001, Rolling Shutter |
| Pixel Size (µm) | 5.2 x 5.2 |
| Active Imager Size (mm) | 6.66 x 5.32 |
| Scanning System | Progressive |
| Dynamic Range (dB) | 68 |
| Sensor SNR (dB) | 45 |
| Responsivity (V/lux-sec) | 2.1 |
| Frame Rates* (@48MHz Clock) (fps) | 20 @1280 x 1024 31 @1024 x 768 45 @800 x 600 52 @752 x 480 52 @640 x 480 120 @320 x 240 |
| Shutter Speed (Exposure Time) (ms) | 1 ~ 750 |
| Hardware Gains | 0.125x ~ 8x |
| Trigger Mode | With external trigger |
| Trigger Cable | ACC-CAM-CON8 |
| Strobe Out | Yes |
| Lens Mount | C– mount or CS-mount (M12.5-mount or custom-defined lens mount supported) |
| Built-in Filters | IR-cut (factory standard), No filter, or IR-pass |
| Power Consumption (W) | < 1.0 |
| Dimension (mm) | 40 x 40 x 25 (CS-mount) 40 x 40 x 30 (C-mount) |
| Weight (excluding lens) (g) | 60 |
Recommended Configurations
| Processor | Pentium III 900 MHz or better, or a compatible processor |
| Operating System | Windows XP, Vista, 7, 8, and 10 |
| RAM | 256MB or greater |
| Hard Disk Space | 30MB for software installation, plus additional space for storing capture images |
| Display | 24 bit True Colour |
| USB2.0 Host Controller | Intel Integrated USB2.0 Host Controller is recommended |
