I/O Control Module

Mightex BioLED Analog and Digital I/O Control Module is a system-level control solution to be used in conjunction with the BioLED Manual/Analog Controlled LED Controllers and with the Polygon400 Pattern Illuminator. It greatly extends the flexibility and ease of system-level set-up when working with Mightex’s Polygon400 systems.

IO Box

Analog and Digital IO Control Module

Mightex BioLED Analog and Digital I/O Control Module is a system-level control solution to be used in conjunction with the BioLED Manual/Analog Controlled LED Controllers and with the Polygon400 Pattern Illuminator. It greatly extends the flexibility and ease of system-level set-up when working with Mightex’s Polygon400 systems.

The I/O Control Module features four (4) independent channels. Each channel has an external trigger input (TTL), an analog voltage output (0-5V) and a digital output (LVTTL). All I/O connectors are BNC-type to work seamlessly with laboratory equipments. Intensity waveform of up to four (4) high-power LED light sources is controlled by the I/O Control Module1, each can output light at a different wavelength (i.e. color). Up to thirty-two (32) different waveforms can be programmed onto the I/O Control Module via USB or RS232. Each waveform can be associated with any one of the four LED’s to form a catalog of up to 128 unique Color/Waveform pairs.

The I/O Control Module can be synchronized with Polygon400 Patterned Illuminator. Each illumination pattern can be synchronized with one of the 128 Color/Waveform pairs, and one can generate a complex sequence of illumination Pattern/Color/Waveform combinations quickly and precisely. The I/O Control Module thus provides a convenient means to simultaneously achieve spatial, spectral, and temporal control of the most advanced illumination system for optogenetics and other experiments.

bls-io04-usf2_newlogo1

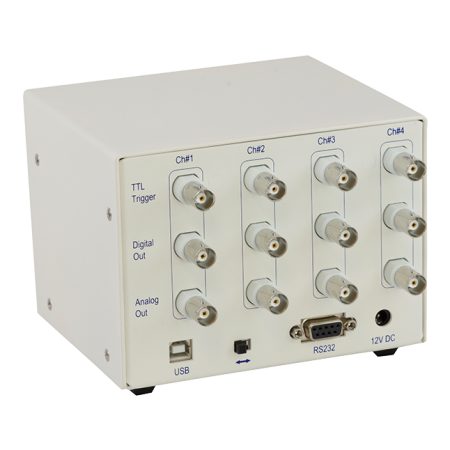

bls-io04-usb_newlogo1

IO Box Specifications

ParametersBLS-IO04-USUnit
Synchronization with Polygon400Yes-
Number of Channels4-
Power supply, Vdc12V
Output analog voltage resolution0.1%
Output analog voltage range0 - 5V
Output analog voltage accuracy+/-0.5% (or +/-3mV)*V
Output digital levelLVTTL-
Time resolution20µs
Maximum pulse number21-
Maximum pulse repeat100,000,000 times-
External trigger levelTTL-
Max. trigger delay25µs
Host interfaceUSB or RS232-
Non-volatile memoryYes-
Dimensions135(L) x 140(W) x 105(H)-
Weight-g
